Overview
Higher quality, true color and Lower cost
A busy, more efficient print shop needs never-say-die, and a printer that can deliver quality output at higher speed. Meet the new WER-D4880UV phone case printer. With original EPSON printhead and a rigid new industrial design, productivity and quality are built inside.
So are big-time savings.
The D4880UV runs with new UV Curing INK, which is available in 4 or 8 colors and cartridges that cost up to 35% lower than the competition. The result? High-volume, low-maintenance printing and bold, exciting colors with higher profit margins.
specifications
Specifications Of Epson D4880UV A2 Desktop LED Flatbed Printer
| Printer Model | WER-D4880UV | ||||||
| Printing method | Drop on Demand ( non-contact micro piezoelectric ink-jet printing technology; micropiezoelectric printing technology; VSDT; intellingent nozzle cloggingsensor system ). 180nozzle/color*8; VSDT. | ||||||
| Head type | One Epson head | ||||||
| Height of print head | 1.2mm/2.8mm above media, adjustable | ||||||
| Max Printing size | 420mm*900mm ( 16.5"35.4" ) | ||||||
| Accteptable media width | 430mm*1000mm ( 16.9"39.4" ) | ||||||
| Material's Height | 15CM max. | ||||||
| Printing resolution | 5760*2880dpi | ||||||
| Ink Type | Rigid LED UV ink /Felxible LED UV ink | ||||||
| Ink Volume | 220cc/440cc±5cc | ||||||
| Ink color | CMYKWWWW or CMYKWWVV or CMYKCMYK | ||||||
| Media platform | Glass or Vacuum suction ( suction motor is optional ) | ||||||
| Media sensor | Two sides, front edge & rear edge | ||||||
| Ink Supply Method | Independent continous ink supply systerm | ||||||
| Moving method | Table moving | ||||||
| Printing interface | USB 2.0 high speed interface & 100 Base-T Ethernet interface | ||||||
| Printing direction | Smart Bi-directional Printing Mode | ||||||
| Printing Speed |
| ||||||
| Lamp type | LED Lamp ( saving energy and environmental friendly ) | ||||||
| Languages | English, Chinese | ||||||
| Applicable Industry | Rigid PVC board, glass, plastic, organic board, leather, pen, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard etc. | ||||||
| Power consumption | 136W/Hour. | ||||||
| Ink consumption | 10ML/SQM. | ||||||
| Auto adjustment function | Nozzle automatic detection;print head automatic aligning | ||||||
| Height adjustment | Auto Sensor | ||||||
| Normal working environment | Temperature 10-35Celsius Humidity 20-80RH | ||||||
| Power/ Voltage | About 75W / 110V/220V 50-60HZ | ||||||
| Operational software | Acro RIP Software and Ultraprint for Windows XP or Windows 7 | ||||||
| Machine confiauration | USB line; driving software; power line; instruction book; washing and ink-joiner tool | ||||||
| Operation system | Windows 2000 / XP / WIN7 / Vista, etc. | ||||||
| RIP software | Acro RIP Pro(White)for Flatbed Printer Ver8.2.3 | ||||||
| Media feeding system | Auto or Manual |
| Packing & Delivery: | |
| Gross weight | 140KG |
| Packing | To be packed with Timber with fumigation certificate |
| Packing Size | 122*100*77cm |
| MOQ | One set per order |
| Delivery | 7 working days afer receiving the deposit |
features
Easy Operation with WER-D4880UV Printer
More than an image output, it's your time to stand on your stage. The WER-D4880UV printer is designed to ensure quality results even at higher speeds:
Original Epson 4880 printing system, which is equipped with original EPSON Piezo inkjet F186000 Printhead with 180 nozzles per channel.
Easily operated with LCD operation panel.
Adopt Hiwin linear rail guider system for A2 UV flatbed printer with dual print heads.
Rigid industrial design ensures quality output with physical resolution 5760*2880dpi.
Providing of LED UV rigid ink, and you can print anything on different materials, superior quality.
Adopt the advanced variable ink drop technology, min size 3.5pl and max size 27pl, speed 30% faster.
High Performance-Price Ratio
Perfect printing size design
A2 420*900mm, A3 329*600mm, A1 600*1500mm.
Many customers think that A3 is too small for their business, while A1 is beyond their budget.
So our company recommend this new D4880UV to meet the demand of the majority and decrease their burden at the same time.
Reasonable price
With its excellent and stable working performance,this new design become the mainstream of market.Compared with A3, you only pay little hundred USD more to get all that functions included.When it comes to A1, D4880UV is several thousand USD cheaper.
Stable performance
From years of sales experience, this printer has very stable print performance, get good feedback from customers all over the world.
Rich, Vibrant, Durable Color effect
New, specially formulated, quick-drying UV CURING INK produces amazingly brilliant colors. The inks also provide excellent long-term outdoor durability, scratch and chemical resistance, broad media support and a wide spectrum of color. Not enough? Configurable to dual-CMYK or CMYKWWWW for finer details, smoother gradations and more neutral grays (made possible with Black ink).
Power Up More of Your Time
Because the WER-D4880UV phone case printer doesn’t need constant attention, you can concentrate on other important tasks. Here are just a few features that get you through longest print runs:
Automatic detection for printer errors
Adjustable media height for accurate centering
Support of heavy flatbed media
Rigid industrial design eliminates vibration for quality printing even at high speed
Fully adjustable print heads support various media thicknesses less than 15mm
Instant Drying system
The WER-D4880UV dries prints quickly – even in high-speed mode – for immediate finishing, installation or collection by the take-up system,which we name it UV LED drying system.
The integrated drying system features:
UV LED Light Length of wave is 395nm,which is energy saving and eco-friendly
UV cooling system We use water to cool the UV LED Light while working，and it can save your money for cooling liquid.
Print heater to accelerate ink fastness and brightness
Dryer to accelerate drying and ensure greater productivity and scratch resistance
Watch Those Printheads Last Longer
The WER-D4880UV original-part patent-printhead cleaning system is designed to significantly reduce buildup around the edges of the print head, decreasing wear and tear and prolonging its lifespan
applications

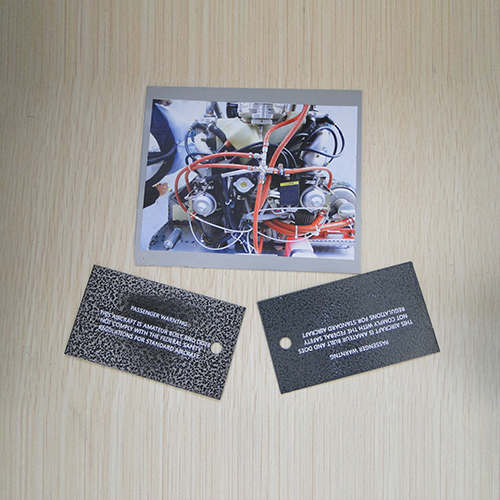

After 10 years’ of experience and exploring in printing industry，WER UV series mainly used for the following media as well：Rigid PVC board, plastic, organic board, leather, rubber, special paper, wood, porcelain, PVC, ABS, acrylic, aluminum, ceramic tile, marble, granite, paperboard etc

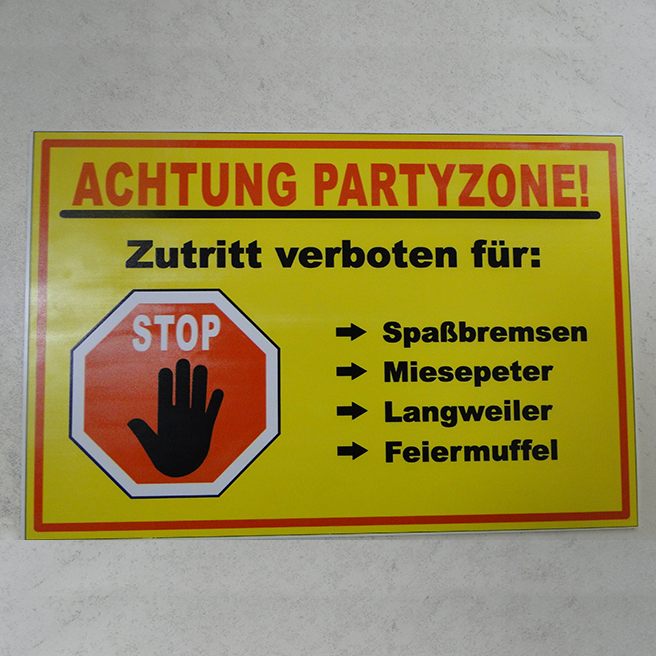

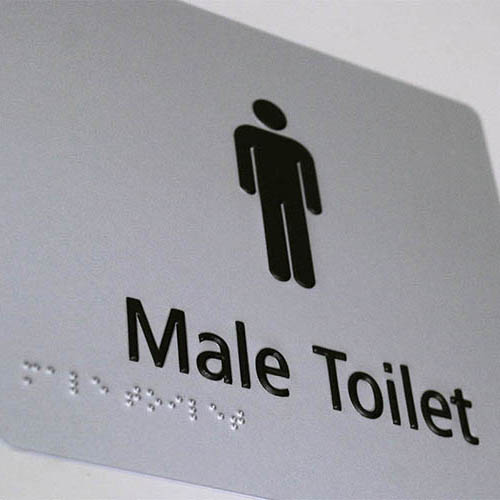

Logo, Sign
Signs and logos, the perfect effect comes out from our printer, make our life more convenient. No matter it is regular shape or irregular shape, whether it is wood, PVC, acrylic or metal materials, our printer can print what you want in high-quality and rich color.
accessories
| No. | Item | Unit | Discription | Warranty | Function | Price |
| 1 | Printhead | PCs | EPSON DX5 | No | Physical resolution control | |
| 2 | ink damper | pcs | No | Ink filter | $3.29 | |
| 3 | Ink tube | m | No | Ink transfer | ||
| 4 | Decoder Chip | pcs | No | Ink color control chip | $3.99 | |
| 5 | Wiper | pcs | No | Scrape the waste ink | $3.29 | |
| 6 | Ink cap top | pcs | No | Printhead moisturizing | $12.99 | |
| 7 | Syringe | pcs | No | Absorb ink when the ink tube is empty | ||
| 8 | Power cable | pcs | Yes | Power supply | ||
| 9 | Printhead data cable | pcs | No | Printhead data transfer | $2.49 | |
| 10 | Short motor belt | pcs | No | Physical resolution control | ||
| 11 | Raster strip | PCs | No | Printing calibration calculation | $9.99 | |
| 12 | Drag chain | PCs | Yes | Printheadhead position transfer | ||
| 13 | USB cable | m | Yes | Computer connection with printer | ||
| 14 | White ink cycle pump | PCs | No | Front & back position control | ||
| 15 | Front & back sensor | PCs | No | Physical resolution control | ||
| 16 | Printhead | PCs | No | Store ink | ||
| 17 | mainboard | PCs | Yes | Printer data control | $349.99 | |
| 18 | I/O board | PCs | Yes | Input & output board | $159.99 | |
| 19 | Y motor | PCs | Yes | Y drive control | ||
| 20 | Z motor | PCs | Yes | Z drive control | ||
| 21 | X motor | PCs | Yes | X drive control | ||
| 22 | LED UV Lamp | PCs | No | UV Drying system | ||
| 23 | Water cooling box | PCs | No | Water cooling system |
Price description
For the above items, there are some consumable parts (like printheads) and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.
| No. | Discription | Quantity | |
| 1 | 3*2mm Black ink tube | 2 m | Free |
| 2 | Black ink damper | 2 pcs | Free |
| 3 | Funnel | 5 pcs | Free |
| 4 | Ink cartridge chip | 1 pc | Free |
| 5 | Syringe 10ML | 6 pcs | Free |
| 6 | Syringe 50ML | 3pcs | Free |
| 7 | Decoder | 1 pc | Free |
| 8 | Software and Dongle | 1 set | Free |
| 9 | Cotton swab stick | 6 pcs | Free |
| 10 | Power cable | 1 pc | Free |
Attention
If you have bought our WER printers, in order to avoid the printhead and the mainboard damage because of some wrong operation, you should install the printhead correctly in operation and maintenance according to the following way. And refer to the instructions, or under the guidance of the professional engineers operation.
| Problem Symptoms | Resolutions |
| Static electricity is too high, which will burn out the printer head. | A:The Operator need to mak electrostatic? eliminating treatment and wear the Anti-static devices if possible to prevent the high static load form burning the circuit board inside of the printer head. B: During installation, try not to touch the surface of print head directly. |
| Printer head will be burned out if the USB line linked the printer head incorrectly | Please contact professional technician if you cannot install USB line of the printer head by following the original way of machine or operating instructions. |
| You should check if the outside voltage is stable and the input voltage is matched with the machine | You should check if the outside voltage is stable and the input voltage is matched with the machine. |
| You have to take of the printer head and clean it carefully. | You have to take of the printer head and clean it carefully. |
| There is no response after starting up. | Check power plug fuse |
