WER-E1802T 1.8m direct to textile printer with 2*DX5 sublimation printer

overview

Innovation to make you more profitable

Shanghai WER large format roll to roll direct to textile printers have played an instrumental role in leading the analog to digital revolution. From the instruction of first small size Desktop and Flatbed T-shirt printer to the latest large format roll to roll textile printers, WER printers continue to expand the possibilities of digital print. Today, our integrated system will help your business reach new levels of competitiveness, profitability and growth.

Step up to WER large format roll to roll textile printer printing and capture more of your customers’ high-margin print jobs with true 1440dpi image quality, direct printing to cotton and mixed textiles, and production speeds up to 30 sq/hr.

1.Original EPSON printhead,which can meet the demand? of various printing works

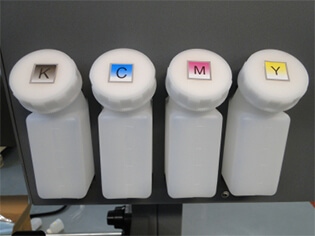

2.Large capacity of ink cartridges,For a more efficiency work,saving 35% time.

3.Direct sublimation ink printing system,This new technology allows customers to Print on medias directly with our professional direct printing sublimation ink

specifications

Specifications Of Epson E1802T Roll To Roll UV Printer

Printer Model	WER-EP1802T
Print Technology	Drop-On-Demand Piezo electric Technology

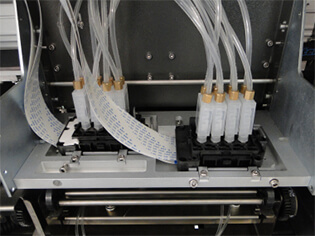

Number of print-heads	2 pcs Epson DX5
Nozzles	4* 4 color ( C M Y K )
Ink type	Sublimation ink print on the media directly
Ink supplying system	Auto sense ink supplying system
Intelligent monitoring system	Auto detecting system while lacking ink
Heating & drying	Heating system	Equipped
	Heating temperature	available: Normal temperature----25°C suggest temperature: 30°C-------40°C
	Drying system	Equipped
Media accetpable	Weave or knit cotton, dacron, flax, silk, polyester, cashmere, towel etc.
Print width max	1800MM
Speed	Mass production mode	30.0m2/h
	Quality mode	22.0m2/h
	Ultra quality mode	15.0m2/h
Print-head cleaning system	Automatic cleaning & auto capping system
Interface	USB2.0
RIP Software	Maintop or Photoprint
Power supply	Ac220V 50/60Hz
Working environment	Temperature: 20℃~32℃; Humidity: 40%~60%
N.W.	300kg
G.W.	350kg
Machine dimension	2860mm800mm1250mm
Packing dimension	3250mm600mm770mm/ 3000mm900mm1550mm

features

Multi-functional printing

1. Heavy duty roller driving structure, film and durable body, operating with high resolution, and long service life.
2. Adopts double epson print head, print maximum width up to 1800mm, print speed 35 square meters per hour
3. 4colors (C,M,Y,K) printing with 1440dpi reach perfect printing.
4. The output image is non-fading, water proof and scratch proof.
5. Acceptable Material: Leather, Wallpaper, Self-adhesive paper, PVC, Mesh fabric, flex banner, Vinyl, coated paper, non-woven paper, pp paper, high glossy photo paper, backlit film, etc.

Direct sublimation printing system

With our professional direct sublimation printing ink, customers do not need to print product with old-fashioned heat transfer sublimation technology. Which takes too much time and printing cost in the past, all you need is to enjoy the faster speed of our direct printing technology.

Automatic heating system built-inside

One key heating system can speed up your printing process, and save labor cost at the same time.

Advanced Media Take-Up System

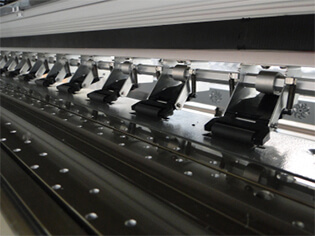

WER-E1802T includes an automated media take-up system to facilitate precision unattended printing when using roll media. This pre-assembled unit includes an advanced tension-controlled take-up system for optimum media feed and tracking.

applications

Traditional screen printing processes for decorating, coating and finishing textiles waste materials and energy. High set-up costs and long make-ready times make short production runs uneconomically, while the complex design implementation process makes new product introduction times lengthy. Traditional techniques are also limited in the range of colours available on a single print.

Benefits of digital inkjet textile printing

Textile printing solutions are available for printing fashion, interior, outdoor and technical textiles

Low set-up and running costs enable you to print economically at all run lengths, greatly reducing inventory requirements

Fast introduction of new designs reduces time to market, keeping you ahead of the competition

Detailed prints with a wide range of vibrant colours increases product quality

Variable image printing and personalisation opens up new product possibilities

Materials can be deposited in precise quantities, greatly reducing ink, water and energy usage

Functionalities, including coatings and active materials, can be applied more efficiently than with conventional methods

The canvas

Canvas is a kind of relatively thick cotton or linen fabric, use plain weave, more commonly a few with twill weave, warp/weft yarn with more shares. Canvas usually called rough canvas and thin canvas two kinds. Thin canvas for labor protection clothing and supplies, after dyeing or printing, also can be used as a shoe, bags fabrics, handbags, backpacks, table cloth, table cloth and so on.

accessories

No.	Item	Unit	Discription	Warranty	Function	Price
1	Printhead	Pcs	Vulnerable parts		Physical resolution control
2	Ink damper	Pcs	Vulnerable parts		Ink filter
3	Ink tube	m			Ink transfer
4	Wiper	Pcs	Vulnerable parts		Scrape the waste ink
5	Ink cap top	Pcs	Vulnerable parts		Printhead moisturizing
6	Syringe	Pcs			Absorb ink when the ink tube is empty
7	Power cable	Pcs			Power supply
8	Printhead data cable	Pcs	Vulnerable parts		Printhead data transfer
9	Short motor belt	Pcs			Motor drive
10	Raster strip	Pcs	Vulnerable parts		Printing calibration calculation
11	Drag chain	Pcs			Printheadhead position transfer
12	USB cable	m			Computer connection with printer
13	Sensor reader	Pcs			Sensor control
14	Ink cartridge	Pcs			Store ink
15	Mainboard	Pcs			Printer data control
16	Head Board	Pcs			Input & output board
17	Y motor	Pcs			Y drive control
18	220 Power supply	Pcs			Power supply
19	X motor	Pcs			X drive control

Price description
For the above items, there are some consumable parts（like printheads）and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.

No.	Discription	Unit	Quantity
1	Ink Tank	500ml	4
2	Ink damper	Standard	2
3	Syringe	Standard	4
4	Copper Cap	small	4
5	Copper Cap	big	4
6	Quick Connector	4mm	10sets
7	Power cable		3
8	Driver software		1
9	Screws	3X8/4X8	20
10	Ink tube	3.8	2m
11	Ink tube	2.8	2m
12	Ink cap top		2
13	Ink pump		2
14	Printhead data cable		2
15	Raster strip		1
16	Swab rod		3
17	Y shape three direct links		1 package

Attention

1.Do not insert the printhead cable in a wrong position, in case of nozzle burn out.

2.In case of a sudden carriage crash, you should avoid nothing to stop the printhead carriage.

3.Be careful when you refill the inks, you should use a funnel to add in case that ink falls on the ground.

4.Printhead cleaning solution should be used when cleaning, in case of the printhead clogging.

5.Before operating the machine, you should read the instruction first, in order to avoid improper operation.
